Server

Defining server’s information in Custom Monitor increases the complications for the features (Server name or IP, user name, password, Local/Remote Specifications).

This section describes the following tasks:

  • Add Server
  • Delete Server
  • Update Server
  • Upgrade CMon
  • Start CMon
  • Restart CMon
  • Stop CMon
  • Show CMon
  • CMon Version
  • Show Running Monitors
  • Run Command
  • Cavmon Stats
  • Upload File

Add Server

Admin user needs to follow the below mentioned steps for adding a server:

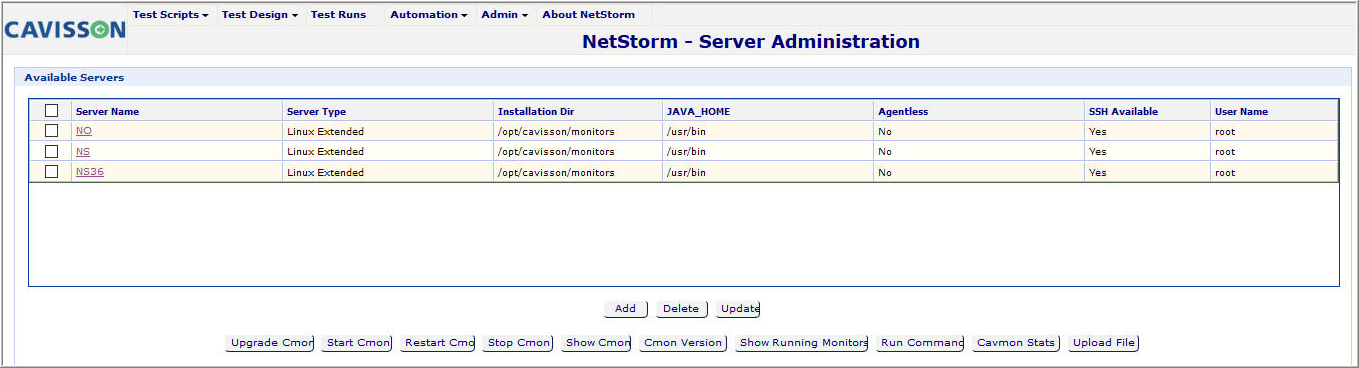

  1. Login to NetStorm as an admin user and click the Servers option under the Admin menu on the tool bar. The NetStorm – Server Administration window is displayed with a list of servers.

23

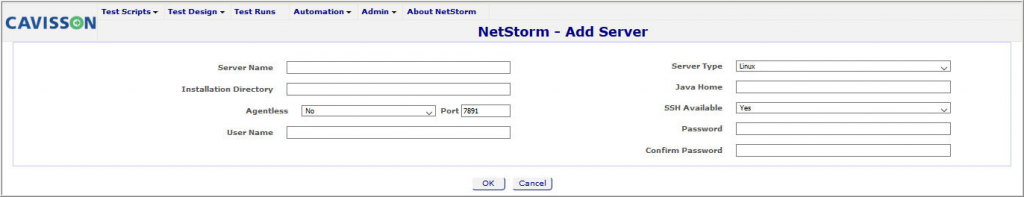

  1. Click the Add button, the NetStorm – Add Server window is displayed.

24

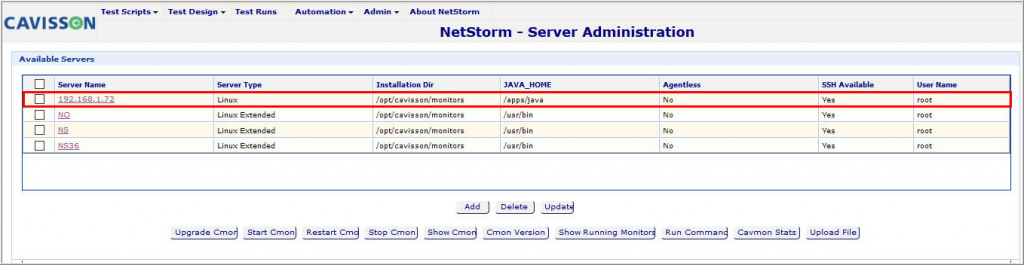

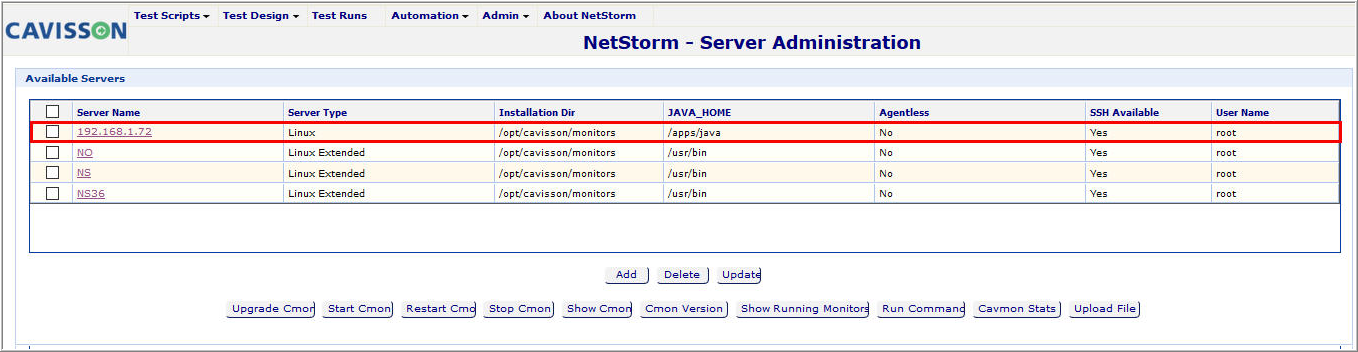

  1. Enter Server name, server type, installation directory, java home, agentless, port, SSH available, user name, password, and confirm password and click OK. The server is added to the servers list.

25

 Note Installation Dir and JAVA_HOME should have absolute path.

If server is Agentless is ‘yes’ and SSH Available is ‘No’. It gives an alert message.

If SSH Available is ‘No’ User Name, Password and Confirm Password all are disable.

Delete Server

Admin user needs to follow the below mentioned steps for deleting a server:

  1. Select the server that needs to be deleted and click the Delete button. A confirmation message is displayed.

26

  1. Click OK. The server is deleted.

Update Server

Admin user needs to follow the below mentioned steps for updating a server:

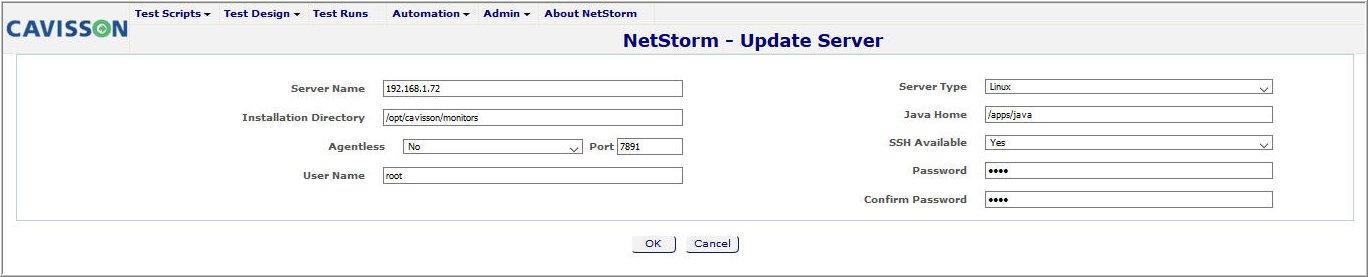

  1. Select the server that needs to be updated and click the Update button.The NetStorm – Update Server window is displayed.

27

  1. Update the required server information and click the OK button.
 Note Server name cannot be changed.

One record can be updated at a time. Otherwise, system generates an alert message.

Upgrade CMon

Admin user needs to follow the below mentioned steps for upgrading CMon:

  1. Select the Server and click the Upgrade Cmon button. A dialog box is displayed.

28

  1. Admin user needs to specify the package name with full path that needs to be upgraded. The package should be on NetStorm machine. It shows upgrade output in text area.

29

  1. Click the Close button.

Start CMon

Admin user needs to follow the below mentioned steps for starting CMon:

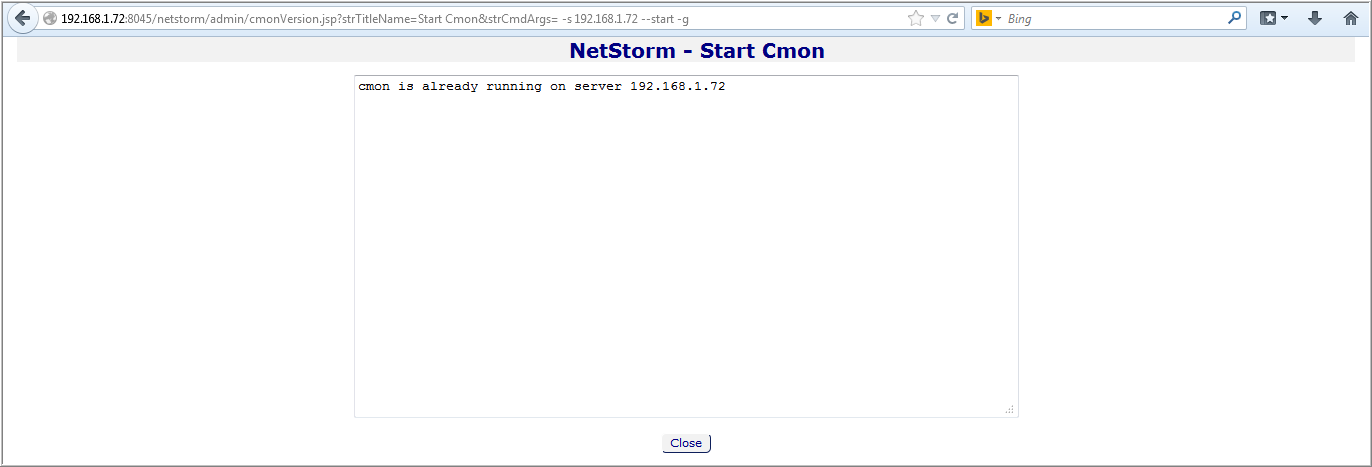

  1. Select the server and click the Start Cmon button. The NetStorm – Start Cmon window is displayed and CMon is started (if not running currently).

30

  1. Click the Close button to close the window.

Restart CMon

Admin user needs to follow the below mentioned steps for restarting CMon:

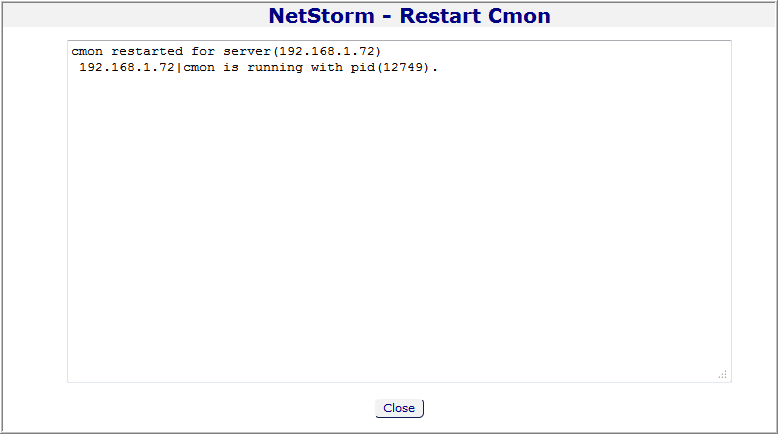

  1. Select the server and click the Restart Cmon The NetStorm – Restart Cmon window is displayed and CMon is restarted.

31

  1. Click the Close button to close the window.

Stop CMon

Admin user needs to follow the below mentioned steps for stopping CMon:

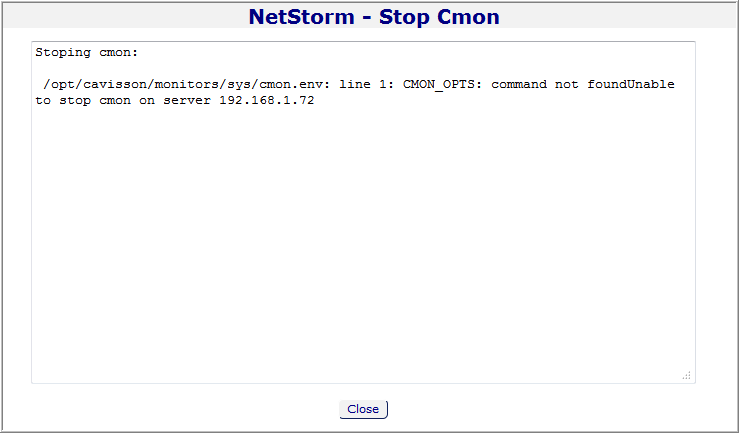

  1. Select the server and click the Stop Cmon The NetStorm – Stop Cmon window is displayed and CMon is stopped.

32

  1. Click the Close button to close the window.

Show CMon

Admin user needs to follow the below mentioned steps for showing CMon:

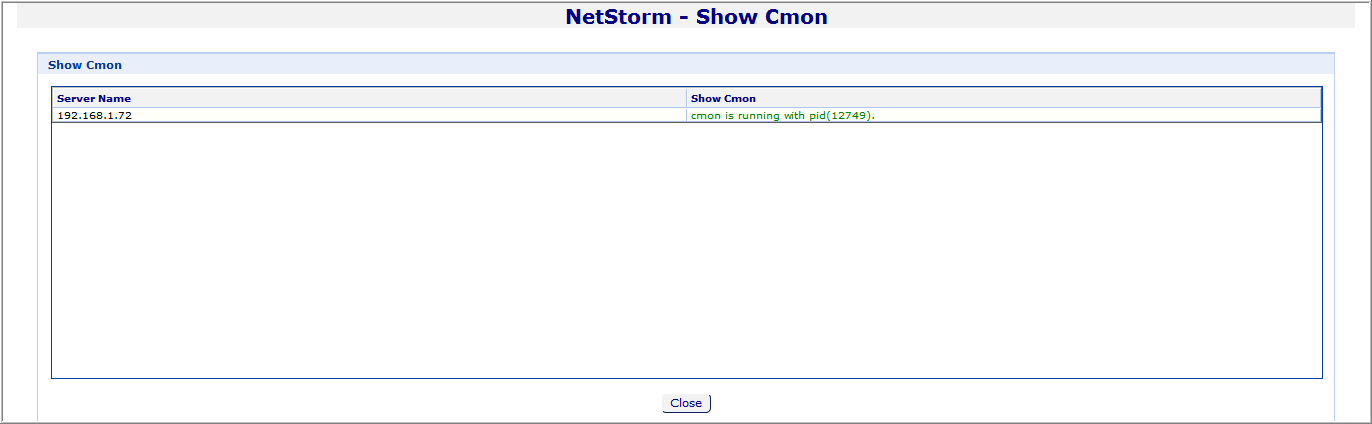

  1. Select the server and click the Show Cmon The NetStorm – Show Cmon window is displayed with a message that CMon is running along with its pid.

33

  1. Click the Close button to close the window.

CMon Version

Admin user needs to follow the below mentioned steps for getting CMon version:

  1. Select the server and click the Cmon Version button. The NetStorm – Cmon Version window is displayed with CMon version.

34

  1. Click the Close button to close the window.

Show Running Monitors

Admin user needs to follow the below mentioned steps for getting running monitors:

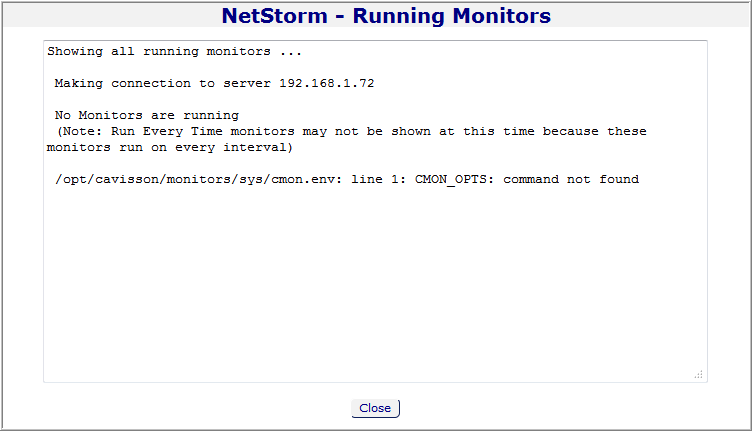

  1. Select the server and click the Show Running Monitors button. The NetStorm – Running Monitors window is displayed showing all the running monitors.

35

  1. Click the Close button to close the window.

Run Command

Admin user needs to follow the below mentioned steps for running a command:

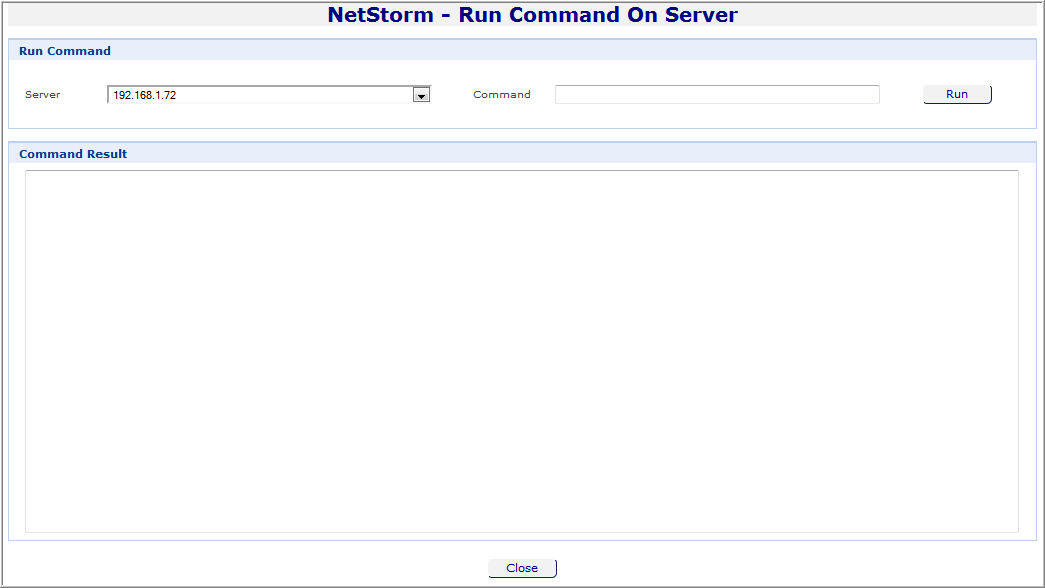

  1. Select the server and click the Run Command button. The NetStorm – Run Command On Server window is displayed.

36

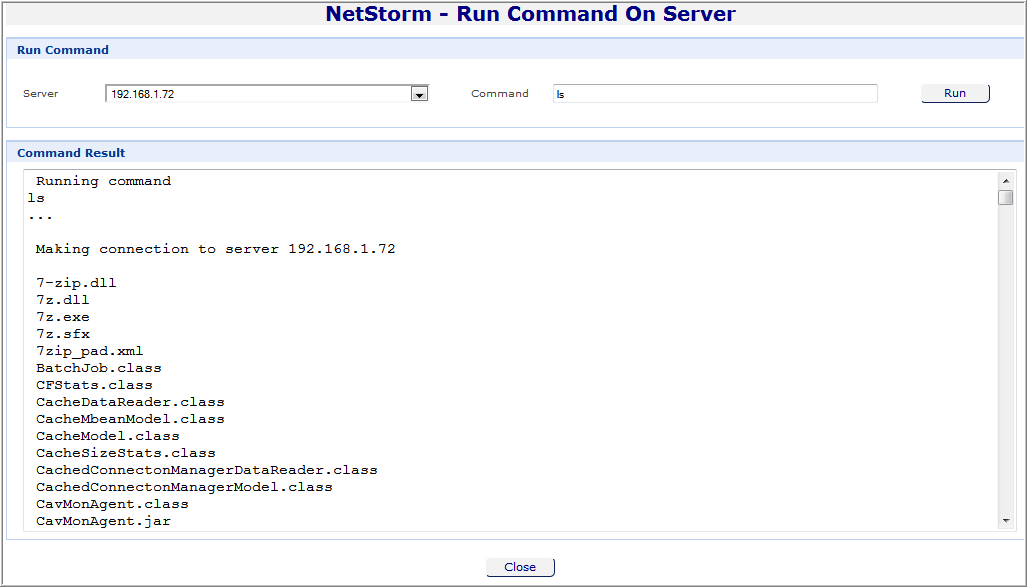

  1. Enter the command in the Command text box and click the Run button. The command gets executed and result is displayed in Command Result.

37

  1. Click the Close button to close the window.

Cavmon Stats

Admin user needs to follow the below mentioned steps for getting the CavMon statistics:

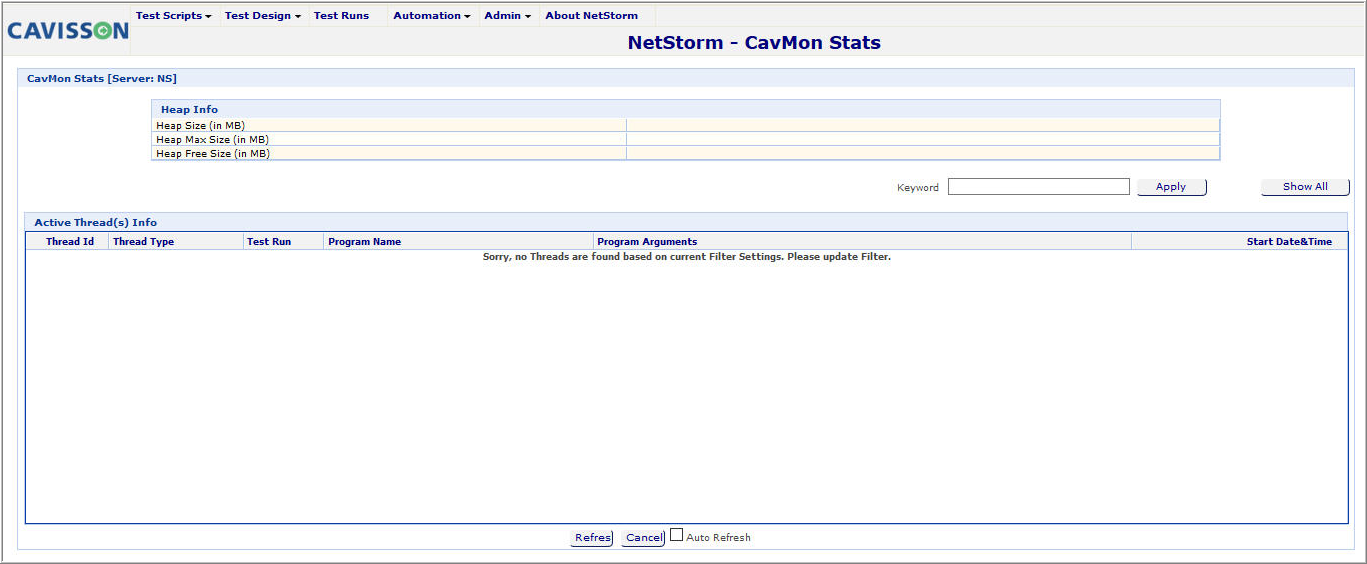

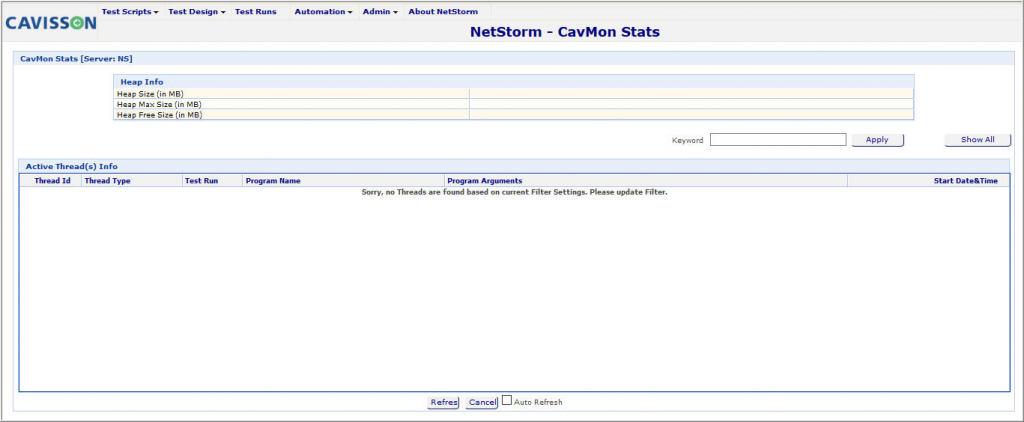

  1. Select the server and click the Cavmon Stats button. The NetStorm – CavMon Stats window is displayed.

38

  1. The NetStorm – CavMon Stats window contains CavMon stats, such as heap info. It also contains Active threads info, such as thread id, thread type, test run, program name, program argument and start date & time.
  2. Click Refresh to refresh the data, click Cancel to close the window.
 Note Admin User can filter the records by entering the keyword and clicking the Apply button.

Clicking the Show All button displays all records.

Records can be auto-refreshed by selecting the Auto Refresh checkbox and specifying the interval.

Upload File

Admin user needs to follow the below mentioned steps for uploading a file to a server:

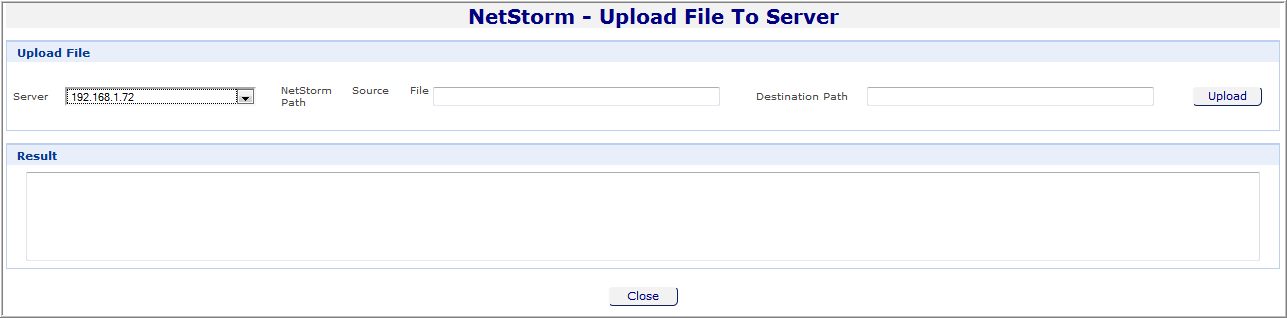

  1. Select the server and click the Upload File button. The NetStorm – Upload File To Server window is displayed.

39

 Note Admin User can also select the server from the Server drop-down list in the NetStorm – Upload File To Server window.

  1. Enter the NetStorm source file path and destination path and click Upload. The file is uploaded to the on the server at the destination path.
  2. Click the Close button to close the window.
