Custom Query Management

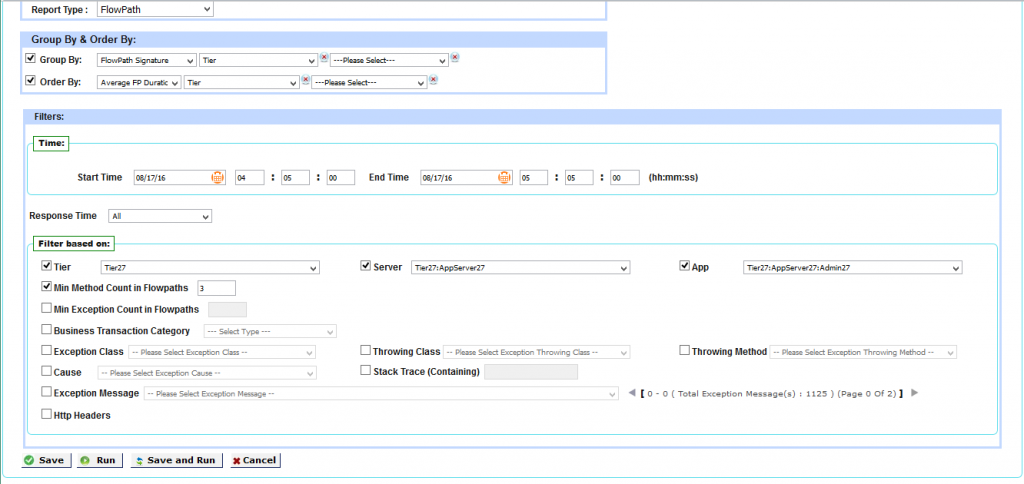

There are following sections within custom query management:

  • General
  • Type
  • Group By and Order By
  • Filters

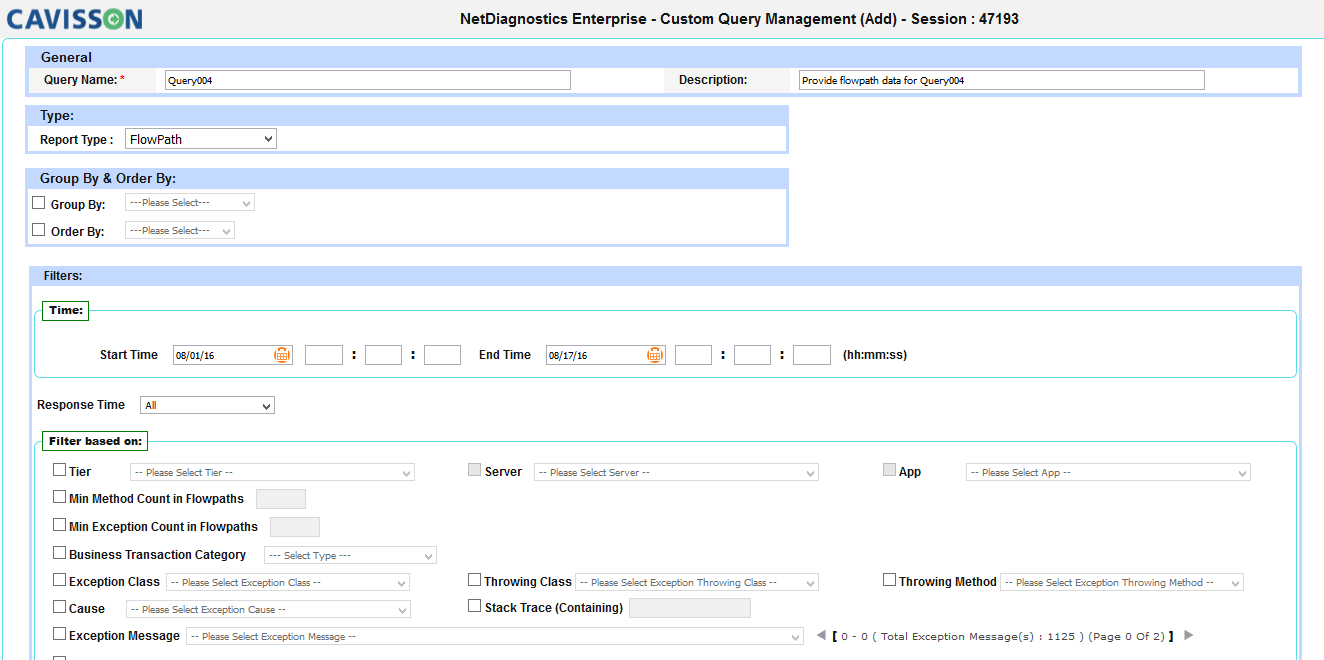

General

  • User needs to provide query name and description of the query.

29

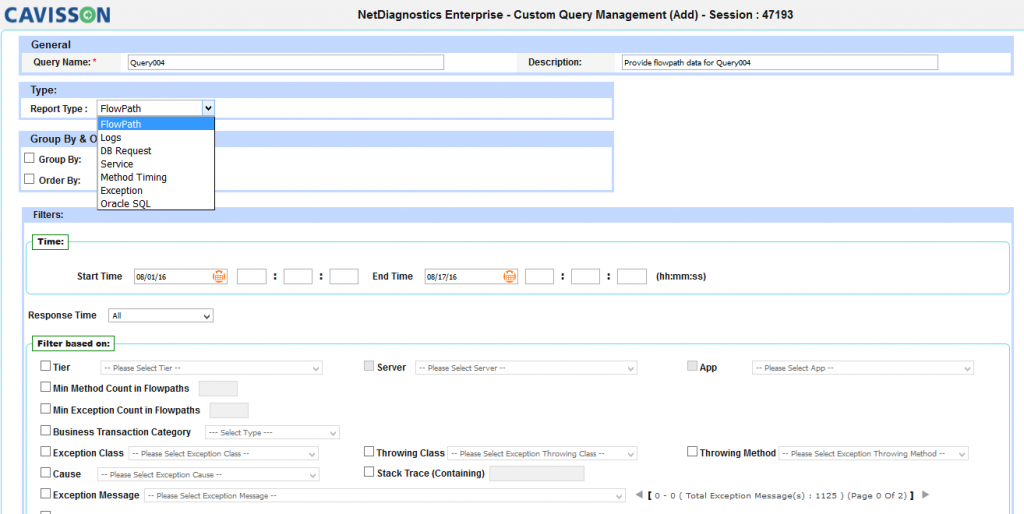

Type

  • User needs to provide report type of the query according to requirements.

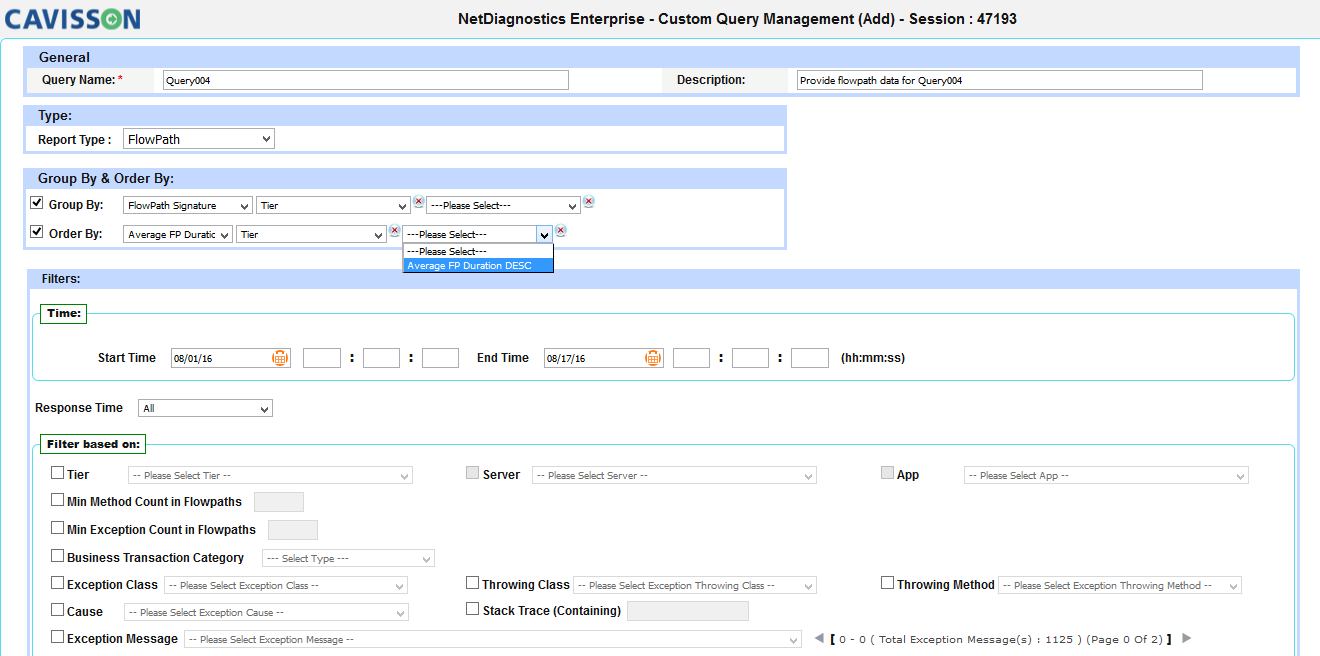

Group By and Order By

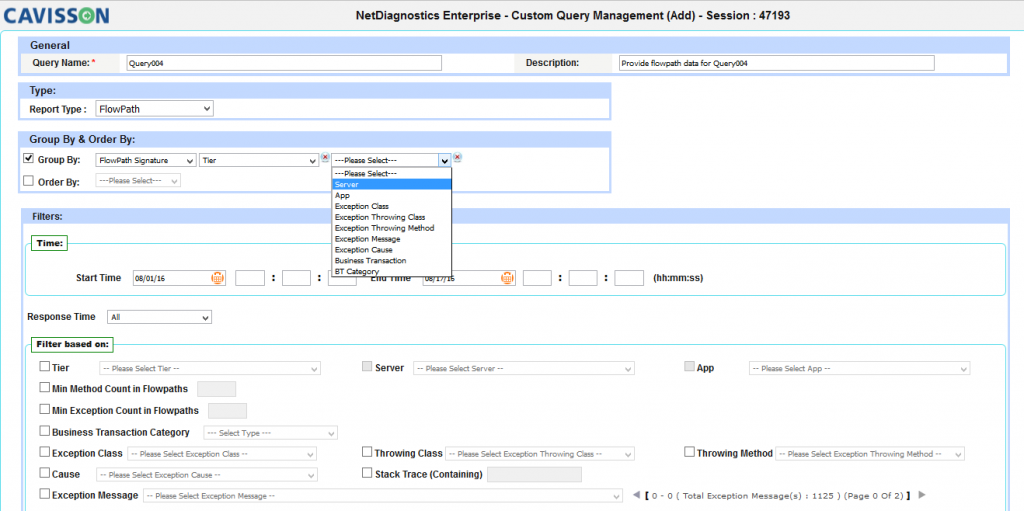

  • On selecting Group By check box, user can group any query by flowpath signature, tier, server, app, etc. by selecting from drop down menu.

  • On selecting Order By checkbox, user can order by any query by selecting the options displayed in drop down menu.

Filters

There are two terms:

  • Time
  • Filter based on Tier, Server, App etc.

Time:

  • User can provide start time and end time of the query.
  • It provides the data of the specified duration.

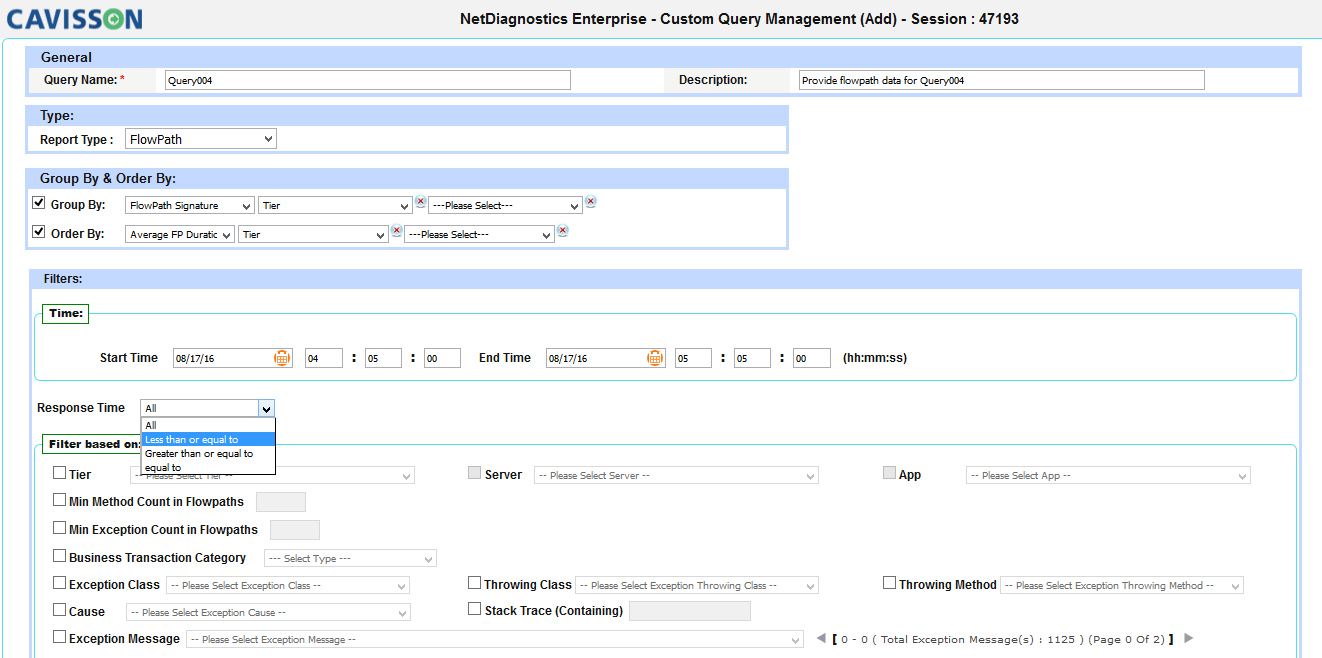

  • User can also provide response time according to requirement.



Filter based on

  • In “Filter based on” there are many options.

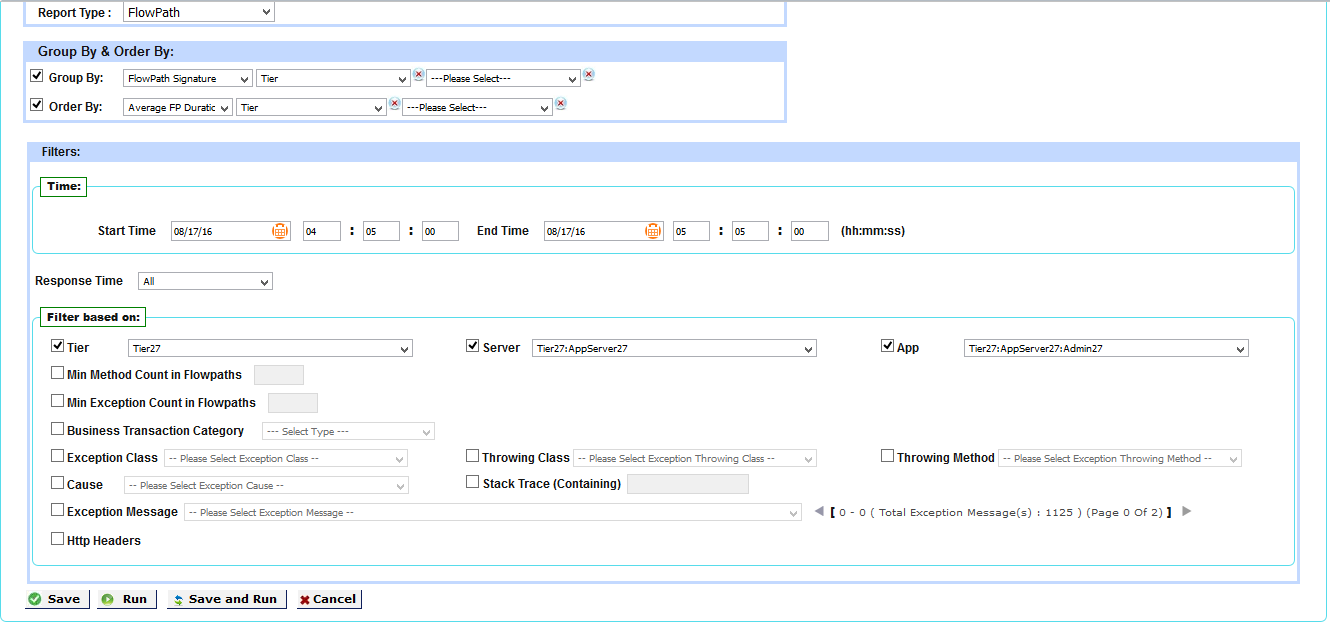

      Tier, Server, App

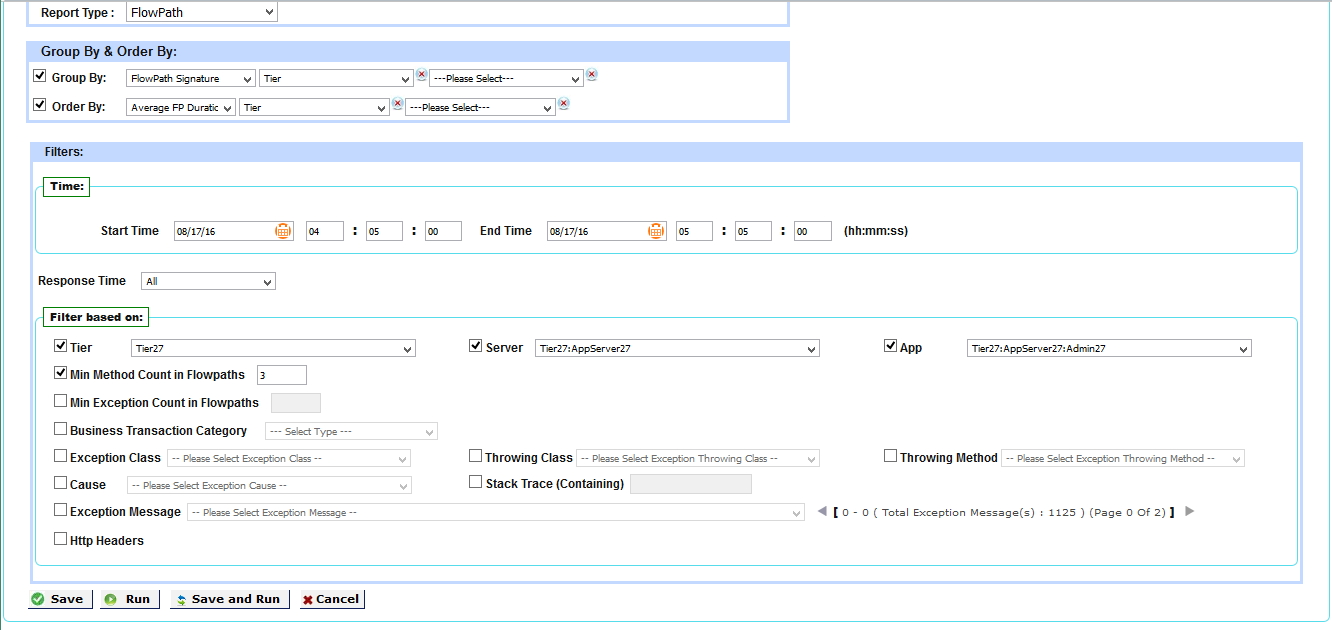

Min Method Count in Flowpaths

  • It provides minimum number of method counts in flowpath.
  • Suppose if user specifies 3 in “Min Method Count in Flowpaths” then system provides number of method counts equal to 3 or greater than 3.

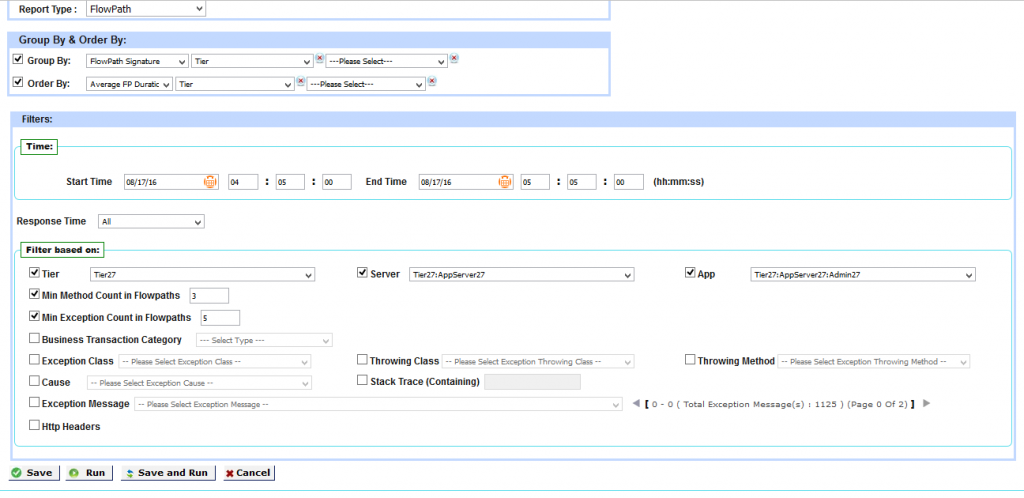

Min Exception Count in Flowpaths

  • It provides minimum number of exception counts in flowpath.
  • Suppose if user specifies 5 in “Min Exception Count in Flowpaths” then system provides Flowpath report in which number of exception counts is equal to 5 or greater than 5.

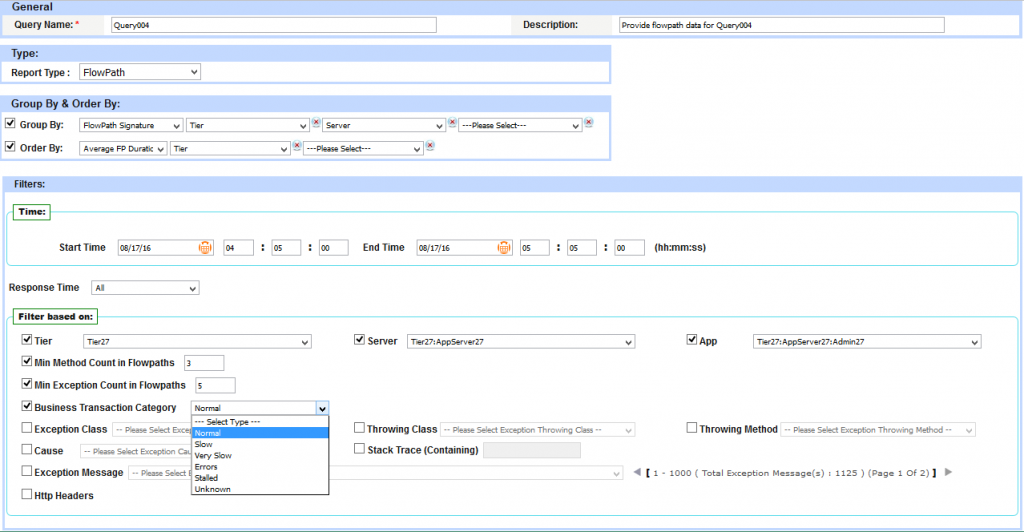

Business Transaction Category

  • It provides data according to the report type of the query.
  • Suppose if user selects “FlowPath” in report type and “Normal” in business transaction category then system provides data in flowpath according to normal category.

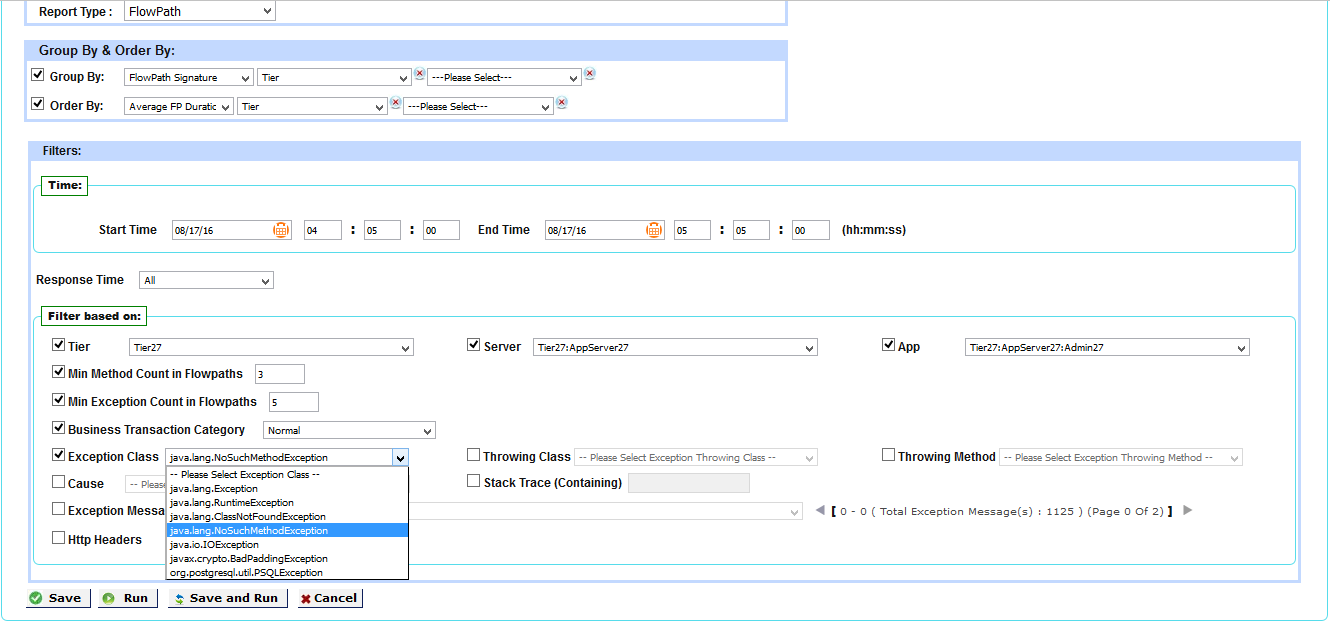

Exception Class

  • System provides data of exceptions according to the selected exception class.

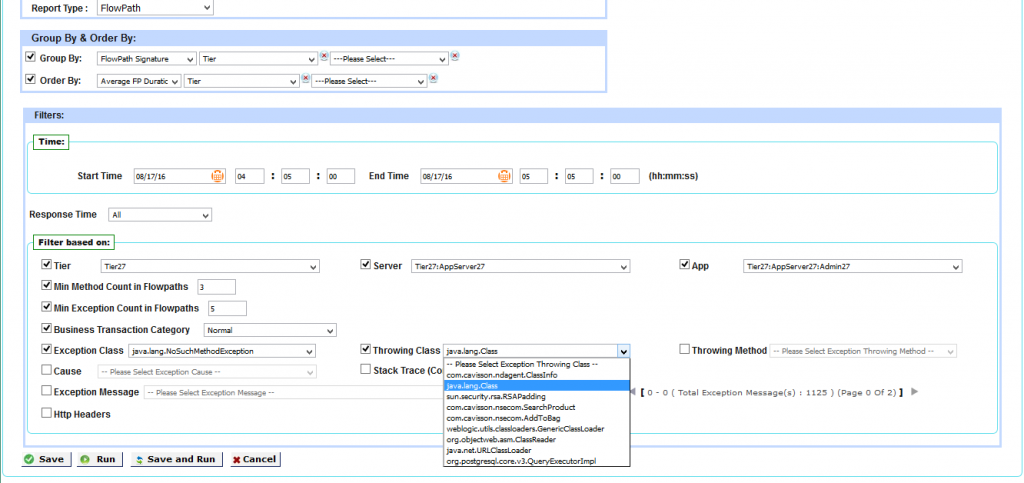

Throwing Class

  • It provides data for exceptions according to the selected throwing class.

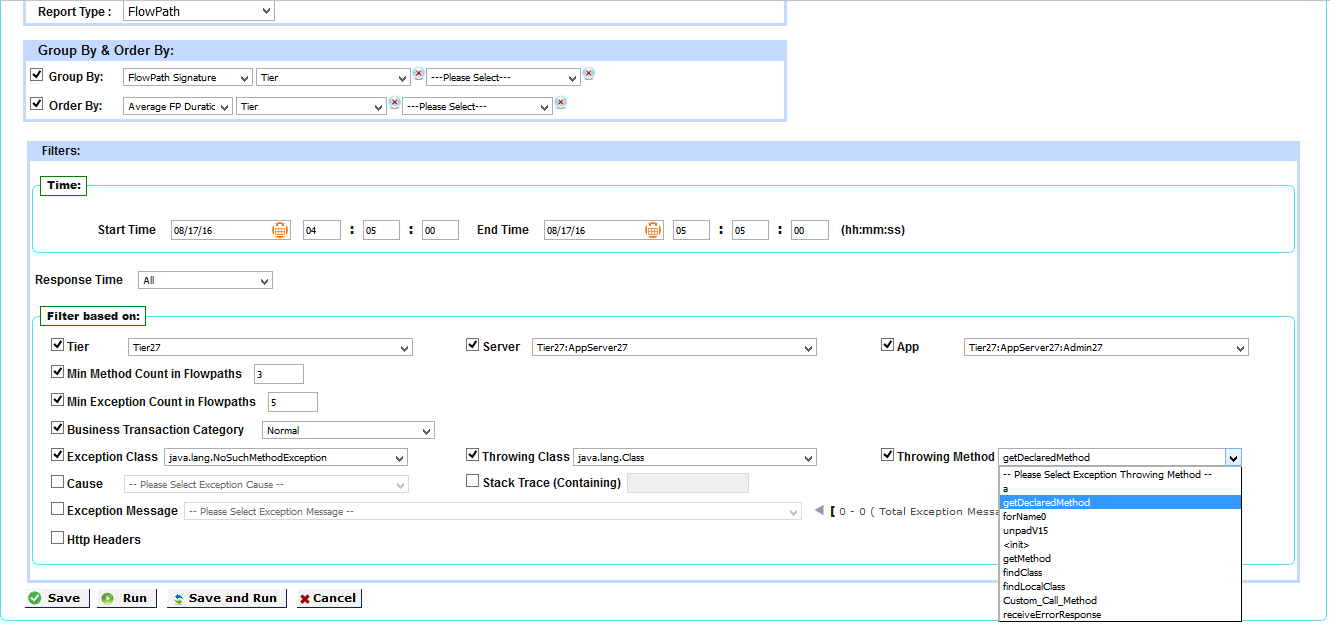

Throwing Method

  • It provides exception data according to the selected throwing method.

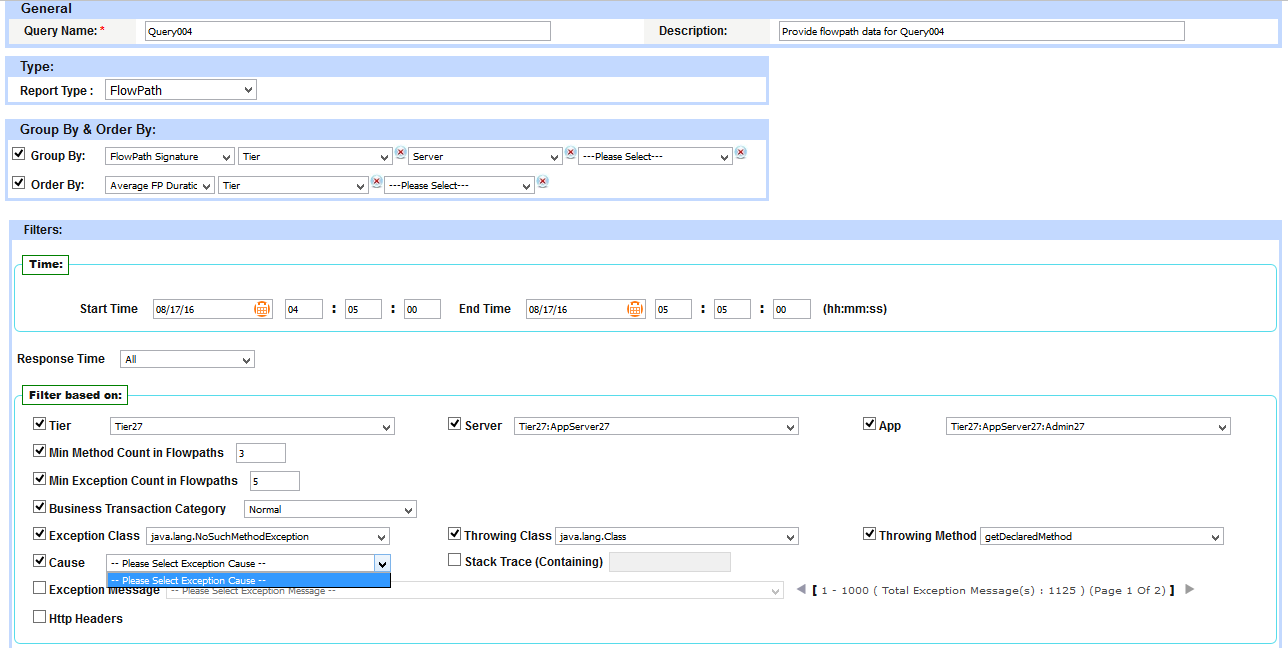

Cause

  • It provides cause of the selected exception class.

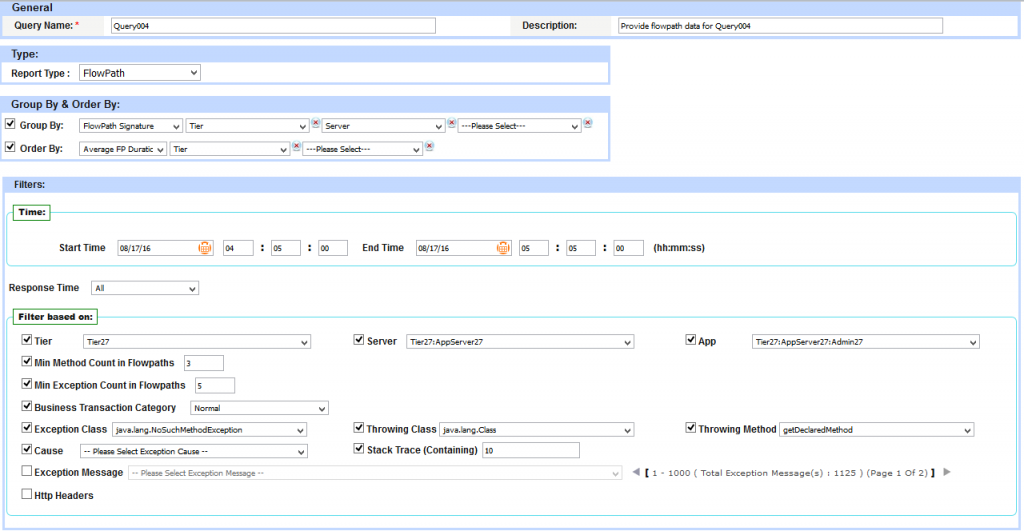

Stack Trace (Containing)

  • User can enter part of stack trace to filter.

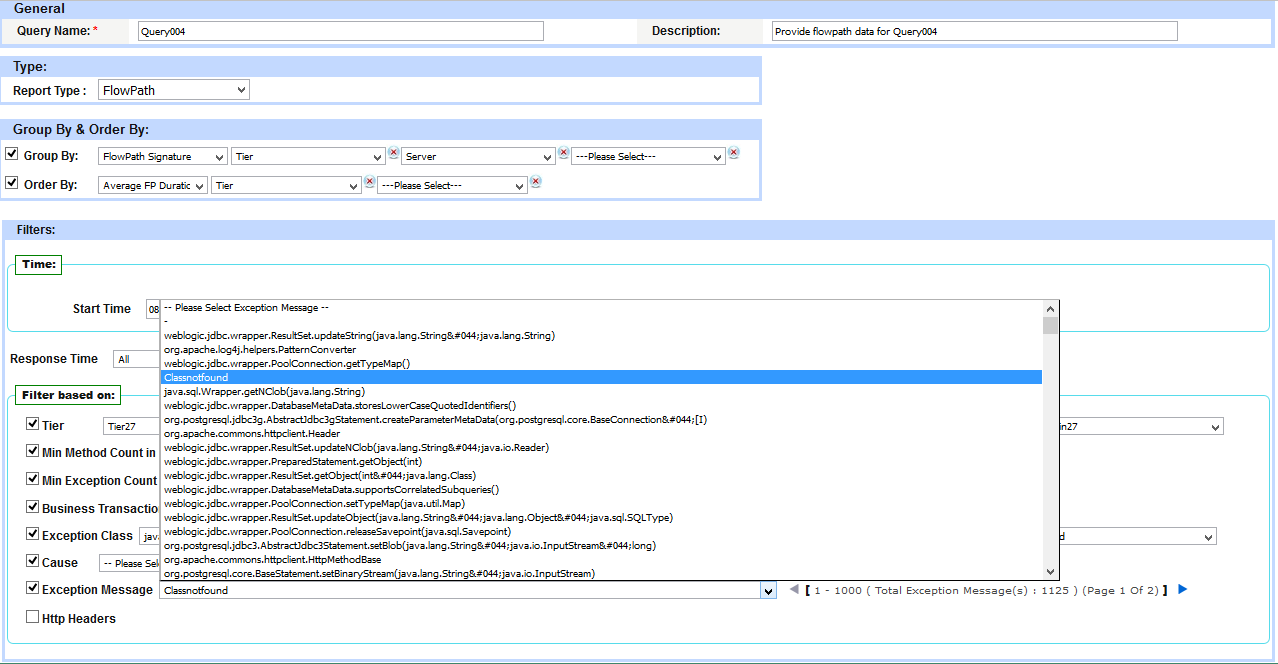

Exception Message

  • System provides flowpath report which has selected exception message data.

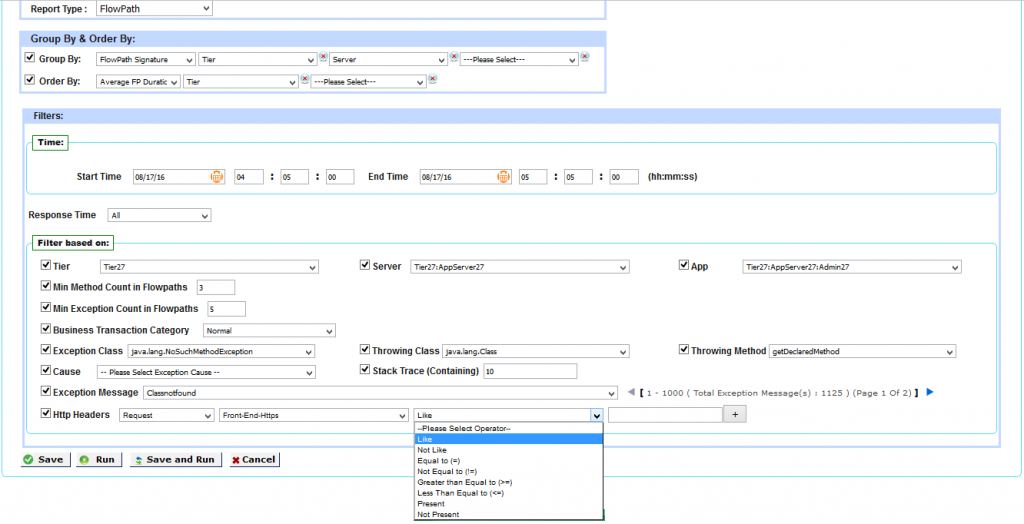

Http Headers

  • It provides data regarding selected headers.

Actions on Custom Query

User can perform following operations on custom query.

Save

  • To save a query, click the Save button. The query is displayed in Drill down reports after saving it.

Run

  • User can run the query without saving it by clicking the Run button.

Save and Run

  • To run a query along with saving it, click the Save and Run button.

Cancel

  • To close the Custom query management window, click the Cancel button.

To perform visual analysis of testing and production monitoring data, user can use the Web dashboard feature of NetDiagnostics.
